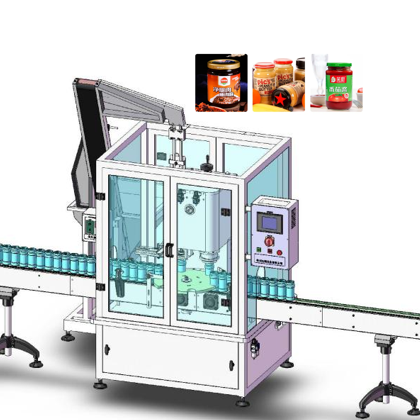

Vacuum capping machine

: ~~暂无价格~~

产品说明

Product Description

1. The vacuum capping machine is suitable for the sealing of the glass bottle of various shapes and specifications, the bottle and the cover are automatically delivered to the vacuum chamber position,

then the vacuum chamber is formed, the vacuum is vacuumed, and the cover is tightened.

2. Applicable specifications: three screw cap, four screw cap.

Main parameters of the machine

Data sheets	Details
Name and model	Automatic vacuum capping machine
Cap closing speed	800~1200 bottle one hour
Cap diameter	Φ30≤D≤Φ90mm
Bottle diameter size	Φ38≤D≤Φ100mm
Bottle height size	50≤H≤250mm
Power	1000W
Voltage	AC220V, single phase, 50/60HZ
Working pressure	0.6Mpa
Machine size(LWH)	300019502150mm
Packing size(LWH)	220012702100mm, 23009101360mm
Net/gross weight	650/830kg
