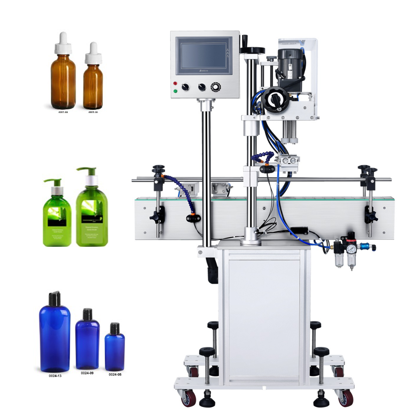

Automatic capping machine

: ~~暂无价格~~

产品说明

Product Description

1. This machine is used for automatic capping of plastic bottles and glass bottles in cosmetics, food and beverage, pesticide and fertilizer, chemical industry,

it can be applied to a variety of bottle types, high production efficiency.

2. Touch screen control capping time, and do not damage the cap.

Main parameters of the machine

Data sheets	Details
Name and model	Automatic capping machine
Closing cap motor	Gear motor
Cap closing speed	0~30 caps/minute
Applicable cap size	Φ20mm≤D≤Φ80mm
Applicable bottle	Φ20mm≤D≤Φ100mm
Applicable bottle height size	40mm≤H≤300mm
Power	500W
Voltage	AC220V, single phase, 50/60HZ
Working pressure	0.6MP
Air consumption	500L one hour
Machine size(LWH)	12007001700mm
Machine direction	From left to right
Operation process	Products on conveyor —>put cap manual —>Automatic detect by sensor —> carry the bottle —> cap closing by four rubber rolls—> loose bottle—>finish
