Vacuum capping machine

: ~~暂无价格~~

产品说明

Product Description

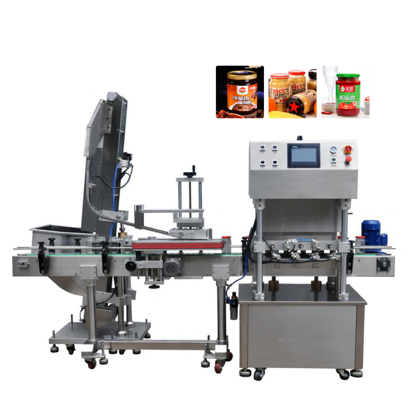

This automatic twist off vacuum capping machine is suit to close all kinds glass jars and twist off caps in food industries, like honey, sauce, fruit jam, pickled vegetables etc.

The working principle is rotating the jar glass with twist off cap into vacuum chamber. Then the machine closes the lid by pumping air inside to the vacuum chamber to make the inside pressure achieving the setting pressure.

Main parameters of the machine

Data sheets	Details
Name and model	Automatic Vacuum capping machine
Capping torsion	5-20Nm(adjustable)
Pressure inside bottle	≤67KPa
Cap closing speed	0~1800 bottle one hour
Cap diameter	Φ38≤D≤Φ70mm
Bottle diameter size	Φ45≤D≤Φ85mm
Bottle height size	30≤H≤180mm
Power	1000W
Voltage	AC220V, single phase, 50/60HZ
Working pressure	0.6Mpa
