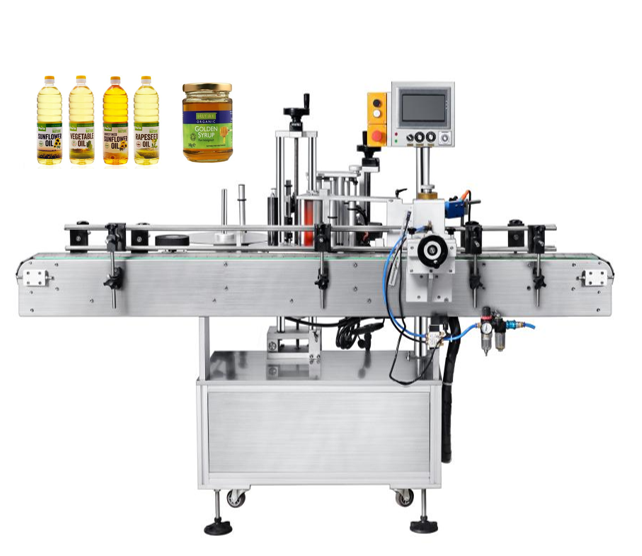

Automatic bottle labeler

Product Description

1. It is suitable for round bottle .

2. Don't need to change the model, just adjust the spare part then can suitable for

different size and shape bottle,Regarding as Irregular bottles, need customized labeling machines.

3. Can quickly switch to a different size bottle , simple to cooperate, orderliness beautiful, clean, easy to wash;

Main parameters of the machine

Data sheets	Details
Name and model	Automatic round botle labeling machine
Labeling speed(max)	15-30 pcs /min
Label length	10-60mm
Label width(max)	10-100mm
Size of bottle(max)	Φ110mm
Outside diameter of label roll(max)	Φ350mm
Inside diameter of label roll(max)	Φ76mm
Accuracy of labeling	±1mm
Overall size(LWH)	200010001400mm
Weight	220kgs
Power	300w , AC220V, 50/60Hz
