Essential oil production line

: ~~暂无价格~~

产品说明

Filling Capping Machine Features

1. Panasonic servo digital screw torque control

2. Panasonic servo filling system.

3. Small bottle filler and caper suitable filling volume is 5-60 ml.

4. Filling speed about 1000-3000 per hour.

5. Siemens industrial control system.

6. Small bottle filler and caper suitable for different types of PET bottle or glass bottle like eyedropper liquid, oral liquid, aseptic drops and so on.

7. Filling nozzle without leak and drip.

Main parameters of the machine

Data sheets	Details
Name and model	Small capacity filling and capping machine
Max filling speed	1000-1800 pcs/hour
Applicable bottle diameter size	Φ20≤D≤Φ50mm
Applicable bottle height size	30≤H≤100mm
Filling accuracy	±1ml
Bottle material	Glass bottle, plastic bottle
Filling material	Eye drop, e-liquid, cbg oil, cbd oil
Voltage	AC220V, single phase, 50/60HZ
Power	1.2KW
Working pressure	0.6MP
Air consumption	700L one hour (speed 2000 bottles/hour)
Net/gross weight	400/600Kgs
Machine size(LWH)	200016001900mm

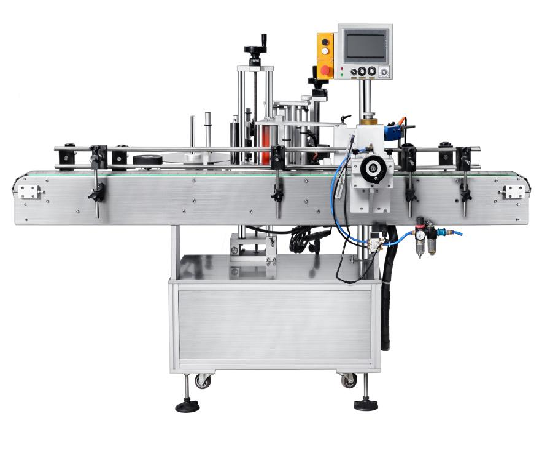

Labeling Machine Description

1. It is suitable for labeling on the circumferential surface of round bottle objects.

2. It sticks single label and double labels on round bottle. The front and back labels space can be flexibly adjusted, such as gel water round bottle, food round cans and other labeling,

widely used in cosmetics, food, medicine, Disinfecting water and other industries.

3. Optional orientation positioning detection device can be used to label the specified position on the surface.

4. The optional coding printer and ink-jet printer can realize the printing date and batch number on the labels.
