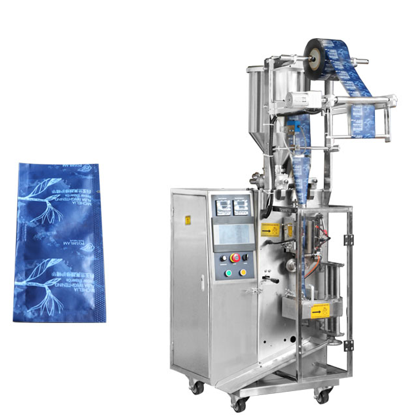

Liquid sachet packing machine

: ~~暂无价格~~

产品说明

Product Description

This liquid packing machine suit for automatic packaging of liquid of foods, medicine and chemicals, such as pesticide, shampoo, body foam bath lotion, facial cream, ingredient oil, fruit sauce, tomato ketchup and honey shower gel, skin lotion, toothpaste, cosmetic cream, fruit jam, edible oil, soy etc.

Main parameters of the machine

Model	Liquid sachet pouch packing machine
Product	Liquid
Measurement	Piston Pump
Hopper capacity	20L
Measuring range(one machine have one range for free, extra need to purchase)	1.7-3.2ml/3-6.5ml/4.7-7.8ml/3.8-10.1ml/6-12.4ml/9.5-16.9ml/13.3-23.9ml/19.2-35.6ml/27.5-51.8ml/47-82ml
Film width (Bag former)	40-240mm
Bag width	15-110mm
Bag Length	L:30-210mm (If special order can do 250mm)
Packing speed	15-60bags/min
Power Specifications	220V,50/60HZ, Single Phase
Shape of the seal(One machine do one sharp sealing)	back sealing, three side seal, four side seal (One machine do one sharp sealing)
Transverse sealing form	horizontal seal net pattern(1.2mm)
Cut off form	zigzag cutting or flat cutting (choose one)
Pull bag way	step motor
Weight	210kg
Overall dimensions	(L)640(W)700(H)1580
Packaging film	Laminate film
Remark	Mechanical Type
